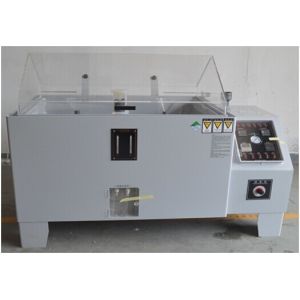

Acetic Acid Salt Spray Coating Corrosion Testing Chamber , High Temperature

Dongguan Haida Equipment Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Acetic Acid Salt Spray Coating Corrosion Testing Chamber , High Temperature

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-E808-90

MOQ : 1 Set

Price : Negotiable

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Temperature Range : 35°C~55°C

Temperature Fluctuations : ≤±0.5°C

Brine tank capacity : 25L

Equipment material : P.V.C rigid plastic board

Lab volume : 270L

Power : Electronic

product name : cyclic corrosion test chamber

Temperature precision : ±1℃

Temperature range : 35℃~55℃

use : paint;electroplating;organic and inorganic coating;anode processing;antirust oil and so on

Contact Now

Acetic Acid Salt Spray Coating Corrosion Testing Chamber , High Temperature

1. Usage

Coating Corrosion Testing Chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

2. Specifications:

Model

HD-E808-90

Inner Box Size (L×W×H)

90×60×50 cm

Outside Box Size(L×W×H)

141×88×128 cm

Equipment Material

Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C. rigid plastic bo.ard

Temperature Range

35°C~55°C

Temperature Fluctuations

≤±0.5°C

Temperature Uniformity

≤±2°C

Temperature Precision

±1°C


Test Chamber Temperature

Salt Spray Method (NSS ACSS)35±1°C
Corrosion-resistant Testing Method(CASS)50±1°C

Saturated air Barrel Temperature

Salt Spray Method (NSS ACSS)47±1°C
Corrosion-resistant Testing Method(CASS)63±1°C

Brine Temperature

35°C±1°C

Spray Quantity

1.0~2.0 ml / 80cm2 / hr

PH

Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2

Lab Volume

270L

Brine Tank Capacity

25L

Power

AC220V,15A

Multiple Safety Protection Devices

Current discharge protection, over pressure protection,over temperature protection, over load fuse protection

Accessories

Testing Salt/ Measuring tank/ Equipment each 1 set

Standard

CNS: 3627, 3385, 4159, 7669, 8886;

3. Available test methods

  1. Neutral salt spray test (NSS test)
  2. Salt spray test (SS test)
  3. Acetic acid salt spray test (ASS test)
  4. Copper accelerated instinct test
  5. High-temperature humid heat test
