Multifunction Servo Rubber Tensile Strength Tester With Computer Control

Name: Multifunction Servo Rubber Tensile Strength Tester With Computer Control
Brand: HAIDA
Price: 1 USD

Wholesale Multifunction Servo Rubber Tensile Strength Tester With Computer Control from china suppliers

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-B604B-S

MOQ : 1 Set

Price : Negotiable

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Accuracy : ±0.5%

Capacity : 1000;2000;3000;5000kg

Elongation Accuracy : 0.001mm

Max. Stroke : 1200mm (including fixture)

Motor : Panasonic Servo Motor

Power : Electronic

Resolution : 1/250000

Sensor : Celtron load cell

Test Speed : 0.1-500mm/min (adjustable )

type : universal tensile testing machine

Contact Now

Multifunction Servo Rubber Tensile Strength Tester With Computer Control

HD-B604B-S Universal Test Machine.pdf

Product Description:

This series of Tensile Tester is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.

Main Technical Parameter:

Items	Specification
Sensor	Celtron load cell
Capacity	500, 1000, 2000KG
Unit Switchover	G, KG, N, LB
Display Device	PC
Resolution	1/250,000
Accuracy	±0.5%
Max. Stroke	1200mm (excluding fixture)
Test Speed	0.1-500mm/min (adjustable )
Motor	Panasonic Servo Motor
Screw	High Precise Ball Screw
Elongation Accuracy	0.001mm
Power	1∮, AC220V, 50HZ
Weight	Approx.155kg
Accessories	One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual

Product Features:

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)

2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation

3. Data transmission: RS232

4. Displacement resolution: 0.001mm

Pictures:

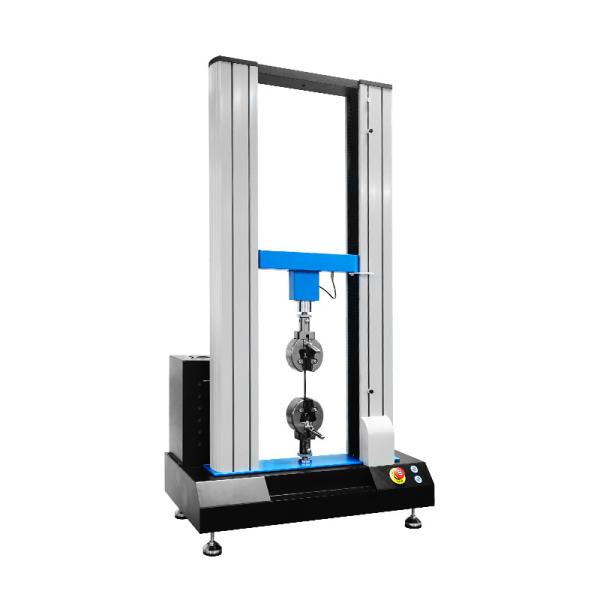

Multifunction Servo Rubber Tensile Strength Tester With Computer Control
