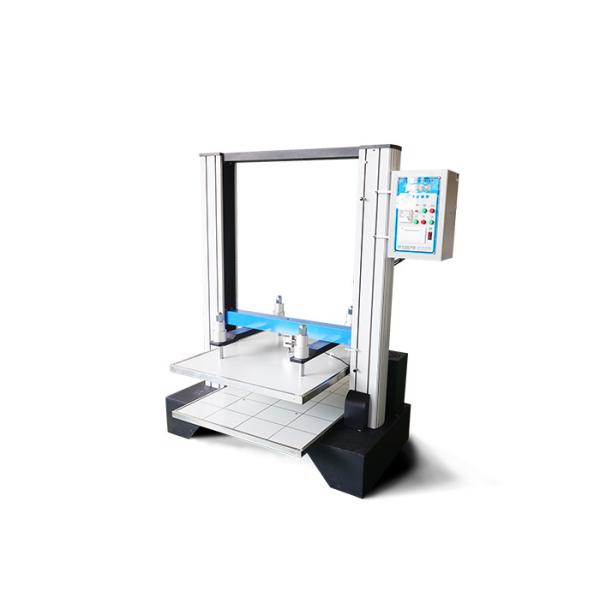

Automatic Carton Compression Tester , computer Package Testing Equipment
Specifications
Carton Compression Testing Instrument
1.High quality
2.2 years warranty
3.Up to TAPPI-T804,
4.Reasonable price
1.About the machine:
carton compression testing instrument electronic test and measurement instrument is applicable in testing the compression endurance and stacking strength and press standard of corrugated carton.
2.Design criteria:
TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4
3.Specifications:
Carton Compression Testing Instrument
| Model | HD-A501-800 |
| Unit (switchable) | Kg, Lb, N |
| Capacity (optional) | 2T |
| Load Resolution | 1/100,000 |
| Stroke (exclude the grips) | 400 mm |
| Load Accuracy | ≤0.5% |
| Test Space (L×W×H) | 800×1000×1000mm |
| Speed of Compression | 10 ± 3 mm/min |
| Operation Mode | PC |
| Report Items | Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
| Structure | AC Frequency Conversion Motor ( Taiwan);
Imported screw rod ;4 sensors; LED display |
| Dimension (L×W×H) | 2370×1500×2100mm (can be custom made) |
| Power | 1ø, 220v/ 50Hz |
| Weight | Approx. 850kg |
| Safety Devices | Overload protection, overvoltage protection & limited position protection device |
| Standard | TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
4.Features
Carton Compression Testing Instrument
1. Using a single-screen operation; do not need to switch the screen;
2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. It can do test of compression, bending, pressure holding & fatigue.
11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
5.Company Services:
All Haida employees adhere to the " Quality comes from precision, quality creates the future " business
philosophy, serve each client actively and conscientiously in order to satisfy Haida equipment brand consumers' needs.
The certification
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
